Packaged Electric Steam Boilers (VSB, VHSB, HSB Series) Boiler

Caloritech™ Electric Steam Boilers are available in Horizontal and Vertical models and can be used as a sole source of steam, or readily adapted to dual energy systems. They come in three different series. VSB The Caloritech™ VSB Electric Steam Boiler provides a safe, versatile, easy to use heat source for low or high pressure steam in industrial, commercial or space heating applications. This boiler's design has set a new standard of reliability proven by thousands of installations. VHSB The Caloritech™ VHSB Electric Steam Boiler features a vertical shell and horizontally positioned elements. It is designed to provide a safe, versatile, easy to use heat source for low or high pressure steam in industrial, commercial or space heating applications. This boiler's design has set a new standard of reliability proven by thousands of installations. HSB The Caloritech™ HSB Electric Horizontal Steam Boiler provides a safe, versatile, easy to use heat source for low or high pressure steam in industrial, commercial or space heating applications. This boiler's design has set a new standard of reliability proven by thousands of installations.

Features

  • Fully packaged to minimize installation costs
  • Designed and built to the latest edition of the ASME Code

Specifications

Fully packaged to minimize installation costs
Standard units designed to operate at less than 100 PSIG; other pressures available if required
Available in a range of sizes, from 10" to 54"
Available in a range of nominal kW, from 9 to 5000
Available in a range of voltages, from 208V to 600V; lower voltages may be available upon special request - check factory for availability
Boiler weights range from 360 lbs to 6000 lbs depending on size

VSB Series Specific

Space saving vertical vessel
Top mounted, vertically positioned flange heaters minimize scaling and simplify maintenance
CSA approved; EAC Marked

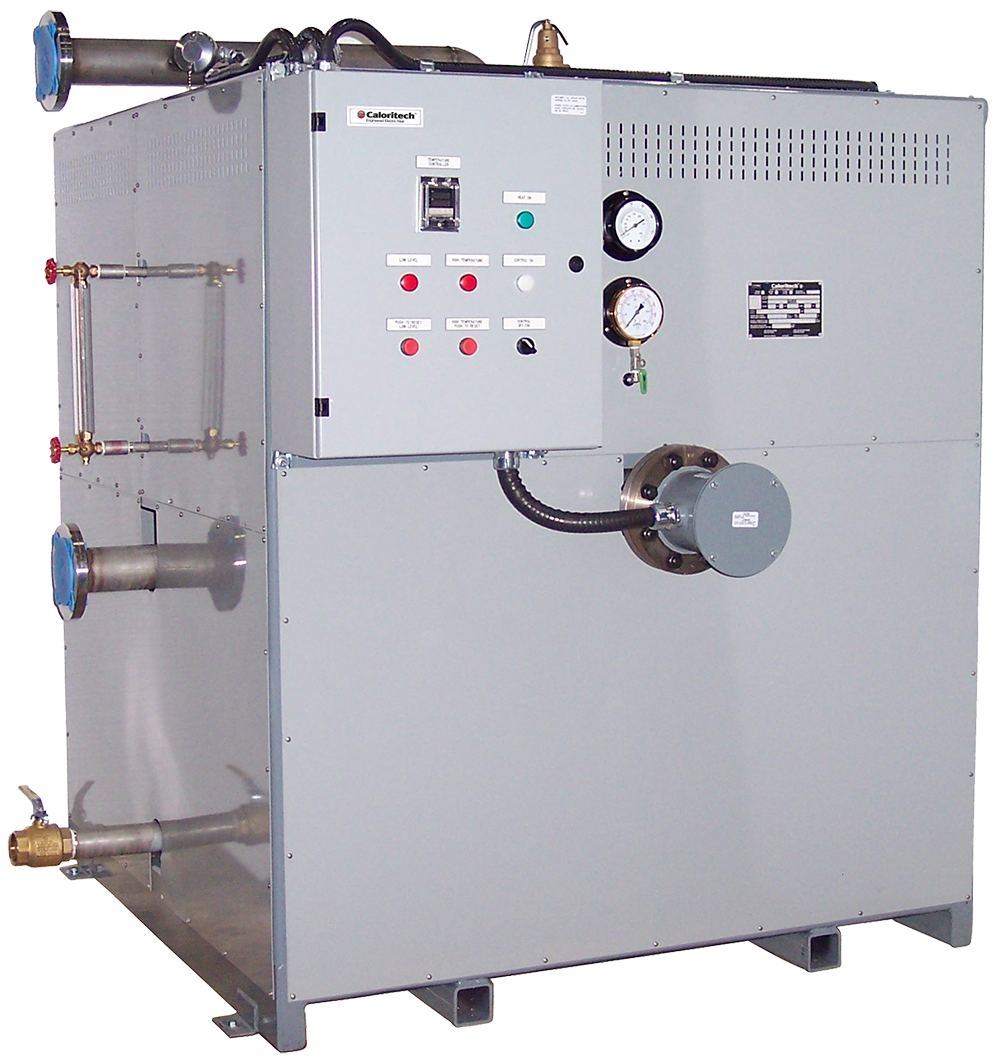

VHSB Series Specific

Available in standard 42" or 48" sizes

HSB Series Specific

Horizontal shell with horizontally positioned elements
Available in 54" size
