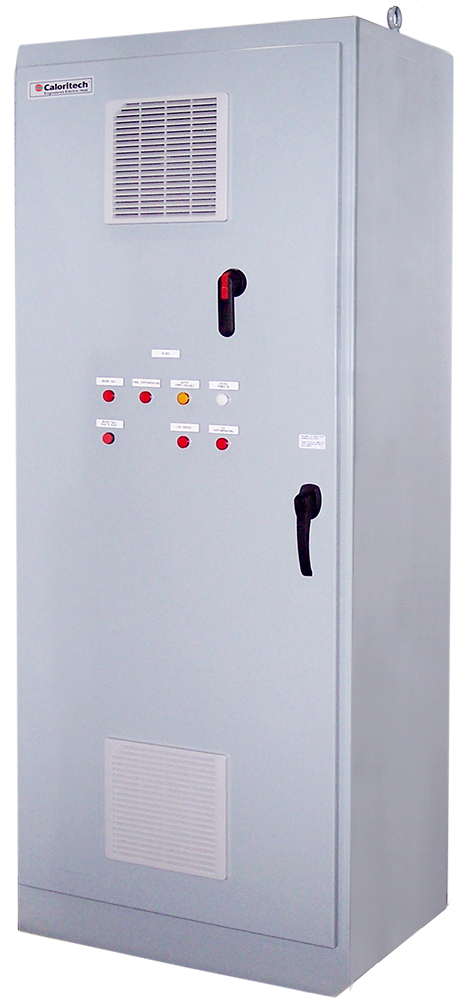

Packaged Hot Water Boilers (HW, VW Series) Boiler

All Caloritech™ Packaged Hot Water Boilers are 100% efficient with over 98% of the energy consumed transferred directly to the water. They come in 5 different series HWB The Caloritech™ HWB Packaged Horizontal Hot Water Boiler is designed for use in applications where a clean, safe, quiet and reliable source of hot water is required and is ideal for use in dual energy systems: electric-oil or electric-gas. VWB The Caloritech™ VWB Packaged Vertical Hot Water Boiler is designed for use in water heating applications and are ideal for use in dual energy systems: electric-oil or electric-gas. VWBG The Caloritech™ VWBG Packaged Hot Water Boiler features a dipped galvanized steel shell and is designed for use in applications such as comfort heating, domestic water heating, freeze protection and process heating. It is also suitable for heating water in commercial dishwashers, heating consumable water for showers/sinks and for heating swimming pools. These boilers are ideal for use in dual energy systems: electric-oil or electric-gas. VWBC The Caloritech™ VWBC Packaged Hot Water Boiler features a sprayed copper inner shell lining for use in water heating applications where a clean, safe, quiet and reliable source of higher purity hot water is required and a galvanized vessel is unsuitable. Typical applications include process heating, heat transfer loops, comfort heating (institutional and commercial), freeze protection, industrial and commercial standby equipment, commercial dishwashers, radiant floor heating, commercial swimming pools, domestic hot water heating, car washes, laundromats and more. These boilers are ideal for use in dual energy systems: electric-oil or electric-gas. VWBF The Caloritech™ VWBF Packaged Hot Water Boiler features an uncoated steel shell and is designed for use in applications where water purity is not an important issue, such as comfort heating, domestic water heating, freeze protection and process heating. These boilers are ideal for use in dual energy systems: electric-oil or electric-gas.

Features

  • Designed and built to the latest edition of the ASME Code
  • Designed to operate at 160 PSIG with the relief valve set at 125 PSIG
  • Fully packaged to minimize electrical and plumbing installation costs

Downloads and videos

Specifications

Space saving vertical vessel with top mounted vertically positioned flange heaters minimize scaling while simplifying maintenance and conserve valuable floor space
Incoloy® sheathed elements silver brazed to a mounting flange
Available in a range of voltages, from 208V to 600V
Clean and odorless; venting not required
Quiet operation
Standard units designed to operate at 160 PSIG with the relief valve set at 125 PSIG; capacities up to 4950 kW and ratings to 2500 PSIG are available on custom order
Fully packaged to minimize electrical and plumbing installation costs
Designed and built to the latest edition of the ASME Code; compliant to SELO standards
Boiler weights range from 350 lbs to 1250 lbs, depending on configuration
A wide variety of optional features available for customization to specific applications, including high/low temperature alarms, pilot light, proportional temperature controller, circulating pump, motor starter, high/low pressure cutoff and more
CSA approved; EAC Marked
