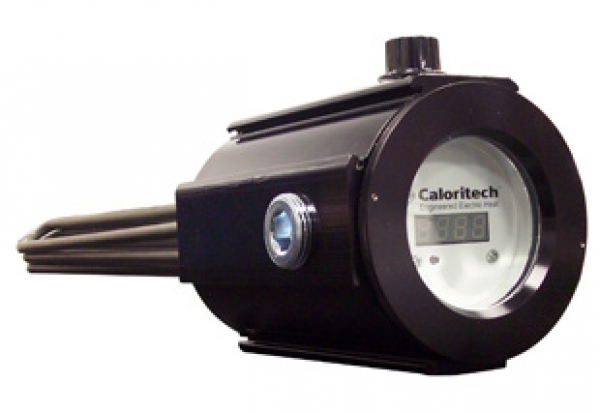

Digital Indicating Temperature Control (for Immersion Heaters) Control

The Caloritech™ Digital Indicating Temperature Control for Immersion Heaters combines the benefits of an electronic temperature controller with the reliability of Caloritech™'s proven immersion heaters in one simple package. This option provides precise temperature control with real-time, continuous process temperature indication for easy monitoring of critical process operating conditions. The compact integral controller is a cost effective solution, eliminating the need for a separate process control monitoring station.

Features

  • High visability LED display
  • Continuous display of process temperature
  • On board 240V 30A solid state relay
  • Optional features such as internal temperature adjustment, special temperature ranges, high accuracy temperature sensor

Specifications

Digital indicating display of operating temperature and setpoint
Externally adjustable temperature setting
Two standard temperature ranges: -15°C to 50°C (0°F to 125°F) and 50°C to 120°C (125°F to 250°F)
Impact resistant tempered glass
x-Max® anodized aluminum enclosure
Multiple conduit entries
Terminal block for convenient wiring connection
Available for use on immersion heaters including screwplug heaters, flange heaters and tank immersion heaters
