Tubular Heaters (IX, HX, KX Series) Specialty Heater

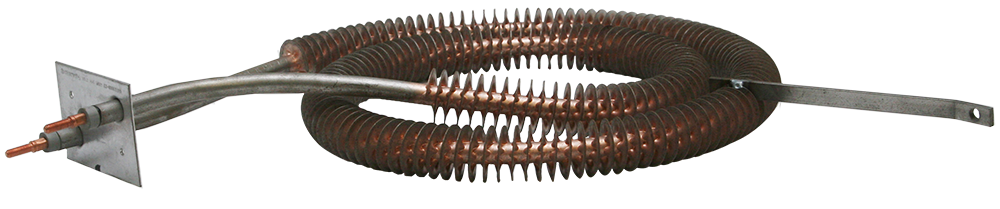

Caloritech™ tubular heaters are available in three different series. HX Straight, Unfinned IX Formed, Unfinned KX Finned IX & HX Series The Caloritech™ IX & HX Tubular Heaters (Calrod® type*) can be used in most heating applications that require process heating temperatures up to 750°C (1382°F). These tubular elements can be clamped, immersed, cast into metal or spaced away from the work as radiant heaters. They can also be positioned in ducts or vessels for heating air and other gases. These units can be factory formed into virtually any shape, and inside bending diameters as small as one element diameter are sometimes possible. Caloritech™ tubular heater styles offer a selection of sheath diameters and material options, including copper, steel, stainless steel, incoloy®, inconel® and titanium. KX Series Caloritech™ KX Finned Tubular Heaters (Calrod® type*) are normally used for forced convection heating applications with outlet air temperatures up to 300°C (572°F). Steel fins are spirally wound over a heating element and then metallurgically bonded by furnace brazing, leaving negligible thermal resistance at the joint. Four surfaces finishes available: bare steel, nickel plated, aluminum painted and black enamel. Finned tubular heaters offer distinct advantages over open coil heaters, including minimized risk of fire or electrical shock, longer service life and less overall required maintenance.

Features

  • Typically manufactured to custom specifications based on the customer application
  • Available in a wide variety of sheaths, diameters and ratings
  • Long life with minimal maintenance required
  • Electrically isolated sheath

Downloads and videos

Install Instructions

Specifications

Typically manufactured to custom specifications based on the customer application
Easy and convenient installation
Available in a wide variety of sheaths, diameters and ratings
Electrically isolated sheath
Placement of heat source to specification
Compact, space-efficient design
Precise and versatile heat control
Long life with minimal maintenance required
Excellent internal electrical insulation and heat conduction
